0.3-0.8mm IBR Corrugated Tile Roofing Sheet Roll Forming Machine Long Life Time

Cangzhou Best Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

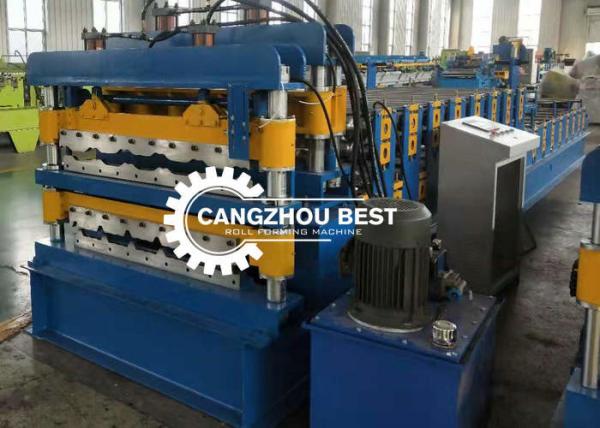

0.3-0.8mm IBR Corrugated Tile Roofing Sheet Roll Forming Machine Long Life Time

  • 1
  • 2

Brand Name : BEST

Model Number : XY18-76-988

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : 0.3-0.8mm IBR Corrugated Roofing Sheet Tile Double Layer Roll Forming Machine

Sidewall thickness : 20mm

Material Thickness : 0.3-0.8mm

Language : Chinese, Emglish, Customized

Forming width : 1000mm

Life time : more than 10 years

Chain : 1.0

Voltage : 380V 60HZ or at your requirements

Raw material : color steel

Contact Now

0.3-0.8mm IBR Corrugated Roofing Sheet Tile Double Layer Roll Forming Machine

1. Main structure

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency

2. Technical Data

Material Thickness 0.3—0.8mm
Un Coiler 3 tons manual
Rolling Speed 10-15m/min
Roller Stations 18 stations
Roller material 45# steel, coated with chrome
Maim Motor Power 7.5kw

Hydraulic cutting Power

4kw
Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electric Source

380V, 50HZ,3 phase

Also can satisfy customer’s require

Control System PLC with touch screen
Way Of Drive 1.2 inch single chain

No Technical Specification
1 Auto Uncoiler Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
2 Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process

It can guarantee that the products are neat

Parallel and everything is uniformity

Please refer to the equipment regulation to know the function of locate angle iron.

3

Hydraulic System

Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

4 Press Form

Press Form

Material of blades: Cr12,quenching treatment

5 Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,Quenching treatment

6 Auto Stacker

Start reducer quickly after finish cutting products, deliver products to hold arms by deliver rollers

Then pneumatic control stack on the store table which is movable

Pneumatic pump (power sources) is self supply.

3. Our Service:

1. Installation and training of light keel making machine:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other
necessary things.
2. After Service of light keel making machine
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling

c. If there is any problem found of light keel making machine, we will repair it for free in one year.FAQ

4. WHY CHOOOSE US

1. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each

sheet for several models.
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. Precise forming, The operation automatically minimizes the tolerance of cutting length
4. A stylish and attractive design, giving the apperance of a traditional roof tile.
5. The raw material can be in different color, with elegant and noble looking.

Working flow:

0.3-0.8mm IBR Corrugated Tile Roofing Sheet Roll Forming Machine Long Life Time

Packing and Shipping
0.3-0.8mm IBR Corrugated Tile Roofing Sheet Roll Forming Machine Long Life Time
0.3-0.8mm IBR Corrugated Tile Roofing Sheet Roll Forming Machine Long Life Time
